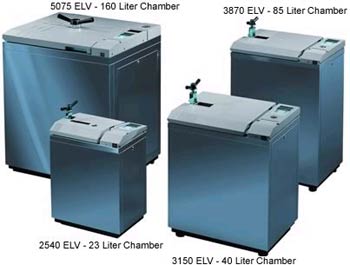

With higher capacity and better performance, the ELV Laboratory line of fully automatic, microprocessor controlled, verticle steam sterilizers provides safe, economical and effective sterilization.

Sterilization Applications:

• Liquids such as nutrient media and buffer solutions
• Solid items such as pipettes, tubes and filters
• Glassware and plastic articles
• Waste sterilization
• The various applications can be carried out using the autoclave’s standard programs.
• Additional options ensure more control overresults and optimal, safe and repeatable sterilization processes.
• For special applications, our experienced team will customize a suitable method for you.

Sterilizer Features:

• The sterilizer microcomputer control system provides high reliability and safe operation.
• 6 individual preset programs.
• LCD Displays pressure, temperature, time and alerts.
• Pre-selected parameters remain programmed until altered.
• Sterilization Initiation - the PT-100 temperature sensor in reference vessel ensures that the set sterilization temperature is actually attained when sterilization starts.
• Demineralized water level for steam generation is automatically regulated.
• Exhaust steam is cooled down before leaving the autoclave.
• Heat-resistant plastic covering on lid prevents contact with hot parts and protects from burning.
• Temperature and pressure regulation
• Pre-prepared for cooling - The autoclaves are prepared for the retrospective fitting of cooling equipment; both electronics and cooling coils can be fitted without difficulty.
• Validation ports are available for external temperature sensors for validation and qualification purposes.
• RS 232 interface

Safety Features:

• Pressure-activated door lock prevents the door from opening under pressure.
• Temperature-dependent door lock - the system prevents the door from opening until the temperature drops below a specified level, thereby preventing delayed boiling
• Door lock safety switch prevents the sterilization program from being started if the door has not been closed properly
• Water level safety device prevents the autoclave from being heated up in the case of insufficient water
• Excess temperature safety device switches off the heating elements if too high a temperature is attained.
• Overpressure valve releases over pressure in order to prevent high pressure risk.

Loading Capacity:

Erlenmeyer flasks:

• 250ml - 5 x 22
• 500ml - 4 x 14
• 1000ml - 3 x 8
• 2000ml - 2 x 7
• 3000ml - 2 x 4
• 5000ml - 3

Schott-Duran Flasks:

• 250ml - 5 x 30
• 500ml - 4 x 22
• 1000ml - 3 x 15
• 2000ml - 2 x 8
• 3000ml - 2 x 4
• 5000ml - 2
